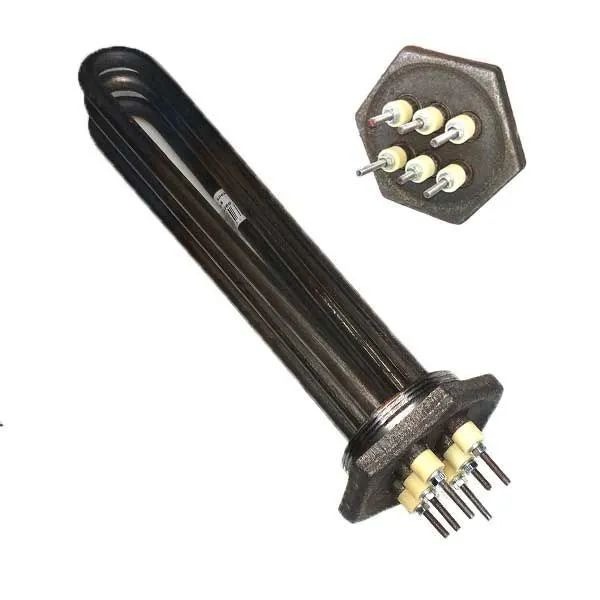

3kW 220/380V Heating Element Block (360mm, G2 1/2") for Boiler

3kW 220/380V 360mm G2 1/2" Carbon Steel Heating Element Block (TEN, TENB, SEV) for Boiler

{ "@context": "https://schema.org/", "@type": "Product", "name": "3kW 220/380V 360mm G2 1/2" Carbon Steel Heating Element Block (TEN, TENB, SEV)", "description": "This 3kW carbon steel heating element block (TEN, TENB, SEV) is designed for water heating (R, J, and X types). The TENB consists of one or more heating elements mounted on a threaded flange. Any pair of unconnected terminals can be used for electrical connection. 3-12kW TENB units are supplied with elements connected in parallel for 220V operation. For 380V three-phase connection (Y configuration), simply disconnect one jumper wire during installation. Key features include: 3kW nominal power, 220/380V voltage, 360mm installation length, G2 1/2" thread diameter, maximum sheath temperature of 100°C, and includes a sealing ring for a leak-proof connection. The heating element utilizes three 45A13/1.0 R 220 Ф2 heating elements. Sealing rings are only supplied with the TENB/SEV units.", "brand": { "@type": "Brand", "name": "[Your Brand Name]" }, "sku": "[Your SKU]", "offers": { "@type": "Offer", "priceCurrency": "USD", "price": "[Price]", "availability": "https://schema.org/InStock", "url": "[Product URL]" }, "image": "[Image URL]", "mpn": "[Manufacturer Part Number]", "weight": "[Weight]", "power": "3kW", "voltage": "220/380V" }

3kW 220/380V 360mm G2 1/2" Carbon Steel Heating Element Block (TEN, TENB, SEV) for Boiler

This 3kW carbon steel heating element block (TEN, TENB, SEV) is designed for water heating (R, J, and X types). The TENB consists of one or more heating elements mounted on a threaded flange. Any pair of unconnected terminals can be used for electrical connection. 3-12kW TENB units are supplied with elements connected in parallel for 220V operation. For 380V three-phase connection (Y configuration), simply disconnect one jumper wire during installation.

Key Features:

• 3kW nominal power
• 220/380V voltage
• 360mm installation length
• G2 1/2" thread diameter
• Maximum sheath temperature of 100°C
• Includes a sealing ring for a leak-proof connection
• Utilizes three 45A13/1.0 R 220 Ф2 heating elements

Sealing rings are only supplied with the TENB/SEV units.

<img src="[Image URL 1]" alt="3kW heating element block"> <img src="[Image URL 2]" alt="3kW heating element block - side view"> See other boiler parts | Contact Us
