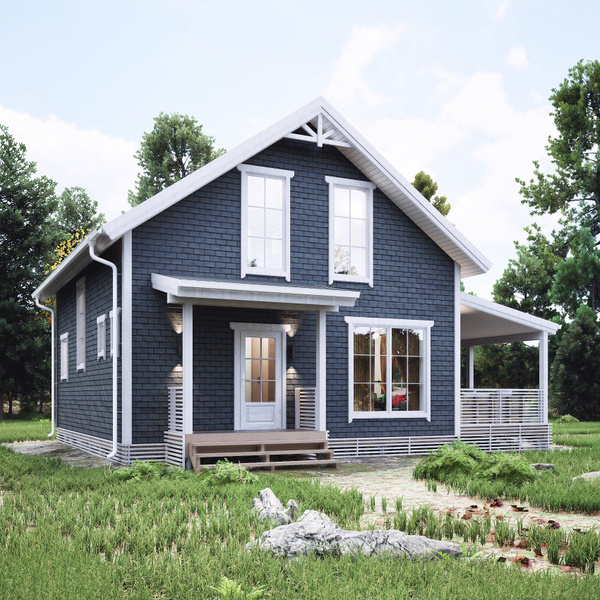

Cozy and Spacious House with Attic: 8×9.2m Frame House Plan

Description:

This stunning 8×9.2m frame house plan (KD-70) offers 153.85 sq.m of comfortable living space, including a spacious 27 sq.m covered terrace. The thoughtfully designed layout features a guest bedroom (11 sq.m), a large open-plan kitchen-living area (33.3 sq.m), and a bathroom with utility space on the ground floor. Upstairs, discover three generously sized bedrooms and another bathroom. This two-story home with an attic boasts high ceilings (2.7m on the first floor and 1.2-3.8m on the second) creating a bright and airy atmosphere.

Construction Details:

Built on a robust foundation of 108mm diameter screw piles with 200x200mm welded heads, the house utilizes high-quality materials and construction methods. The foundation incorporates a wooden grillage constructed from 50x200mm boards, ensuring stability and longevity. The basement ceiling and interfloor ceiling are built using 50x200mm boards, with 200mm insulation between joists in the basement and half that spacing in the interfloor. Exterior walls are framed with 50x150mm lumber, sheathed with 9mm OSB-3 for structural rigidity, and insulated with 150mm of insulation. For superior thermal performance (200mm total insulation), we recommend adding a 50x50mm external batten with additional insulation. The roof uses 50x200mm rafters, with 200mm insulation in the sloped attic area. For year-round comfort, additional internal insulation (50x50mm batten) in the attic is recommended.

Comprehensive Blueprint Package:

This complete, ready-to-build plan includes:

• Architectural Drawings (AR): 21 sheets
• Construction Drawings (CR): 73 sheets
• Optimized Lumber Cutting Plan: 23 sheets

The project is provided in printed format (A4, color) with two identical copies – one for your builders, and one for your records. No digital version is available.

Key Features:

• Total Area: 153.85 sq.m
• Building Footprint: 101.2 sq.m
• Terrace Area: 27 sq.m
• First Floor Height: 2.7m
• Second Floor Height: 1.2-3.8m
• High-Quality Materials: Premium lumber and insulation for lasting durability.
• Detailed Plans: Comprehensive blueprints ensure smooth construction.
• Ready to Build: Start your dream home project today!
