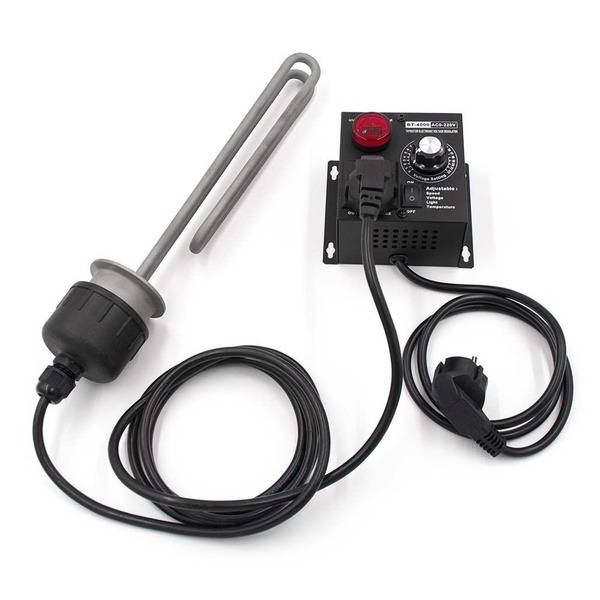

2" Clamp 3kW Non-Stick Still Heating Element with VT-4000 Controller

3kW 2" Clamp Heating Element with VT-4000 Controller for Stills & Boilers

Title: 3kW 2" Clamp Heating Element with VT-4000 Controller for Stills & Boilers

Product Description:

This high-performance 3kW heating element is designed for use in distillation stills, steam boilers, and other brewing equipment. Ideal for both novice and professional distillers and brewers, this robust heating element provides efficient and reliable heating for mash (wort, heat transfer fluid).

Key Features:

• Powerful 3kW Heating: Boasts rapid heating for faster distillation or brewing processes.
• Non-Stick Coating: Minimizes sticking and burning of grain and fruit mashes, simplifying cleanup.
• Durable Stainless Steel Construction (AISI 316): Ensures longevity and resistance to corrosion.
• High-Quality Heating Element (X20H80-N): Provides reliable and consistent heating performance.
• Pure Magnesium Oxide Insulator: Offers superior insulation and safety.
• Precise Temperature Control: The included VT-4000 controller provides precise and adjustable power control with a built-in voltmeter for monitoring.
• 2" Clamp Connection: Enables quick and easy installation.
• Modular Design: The heating element and controller are separate for easy maintenance, replacement, and flexibility. The element can be used independently.
• Extended Power Cord: Features a 2-meter cord on the heating element and a 1-meter cord on the controller for convenient placement.
• High Efficiency: Minimizes energy loss, resulting in faster heating compared to even induction cooktops of similar wattage.
• Digital Control: Allows for precise temperature adjustment, crucial for various distillation and brewing techniques.
• Built-in Voltmeter (VT-4000 Controller): Monitors voltage at the heating element terminals, allowing for precise power adjustment even with fluctuating mains voltage—essential for rectification columns.

Technical Specifications (Heating Element):

• Power: 3 kW
• Voltage: ~220 V
• Insulation Resistance: 500 MΩ - 20 GΩ
• Housing Material: AISI 316 Stainless Steel
• Heating Element Material: X20H80-N
• Insulator: Pure Magnesium Oxide
• Max. Operating Temperature: +125°C

Technical Specifications (VT-4000 Controller):

• Input Voltage: AC 220V 50/60 Hz
• Output Voltage: 10-220V adjustable (output voltage less than input voltage)
• Max. Power: 4000W (220V)
• Display: Indicator scale within a transparent red housing
• Rated Current: 9A
• Max. Current: 18A
• Dimensions: 115 x 100 x 60 mm
• Weight: 450 g

Benefits:

• Easy Installation: Simple clamp-on installation takes less than a minute.
• Portability: Compact and easy to transport, allowing for distillation beyond the kitchen.
• Durability: Constructed from high-quality, long-lasting stainless steel.
• Versatile Use: Suitable for various distillation and brewing applications, including pot still operation.

This 3kW heating element with VT-4000 controller offers superior performance, precision control, and ease of use for all your distillation and brewing needs.
